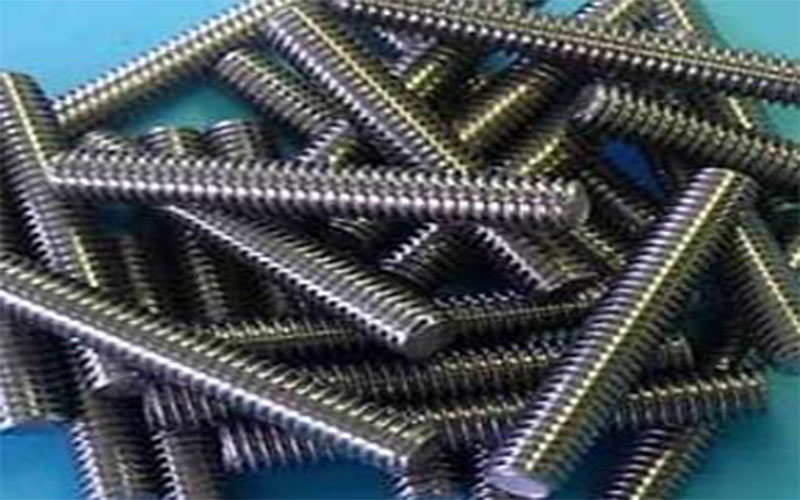

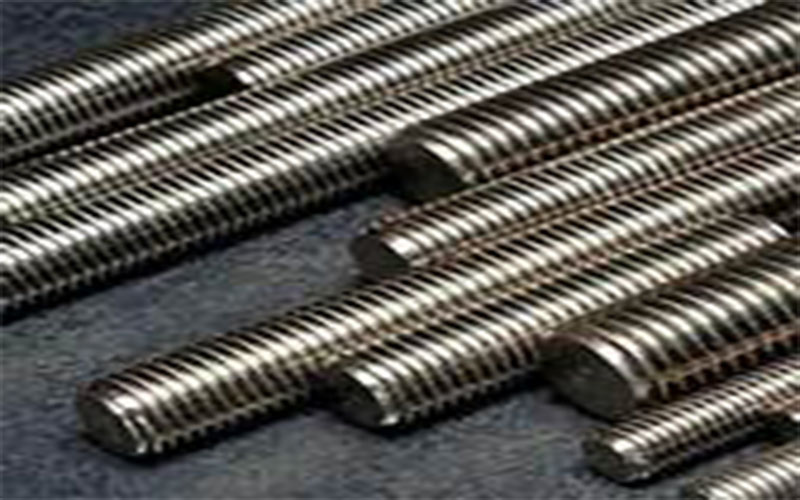

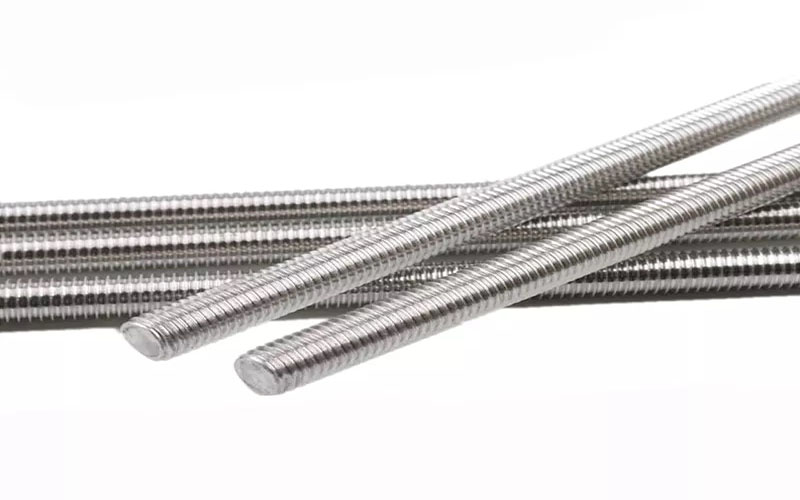

STUD
We at STEEL OILFIELD SUPPLIES are one of the renowned manufacturer, exporter, stockist, stock holder and supplier of a qualitative range of Stud Fastener that are being designed as per the national and international standard quality of raw materials. A snap fastener (also called press stud, popper, snap or tich) is a pair of interlocking discs, made out of a metal or plastic, commonly used in place of buttons to fasten clothing and for similar purposes. Different types of snaps can be attached to fabric or leather by riveting with a punch and die set specific to the type of rivet snaps used (striking the punch with a hammer to splay the tail), sewing, or plying with special snap pliers.
Duplex Steel Stud, Nickel Alloy Stud, Inconel 600 Threaded Studs, Monel Studs Suppliers In India.
Meanwhile, to meet the quality conscious requirements for our highly esteemed clients, we provide these fasteners in different sizes, grades and thickness as per customized requirements given by our customers.
Table of Content
- Stainless Steel Stud Bolt Specification Chart
- Frequently Used 316 SS Stud Bolt Types
- 304 SS Stud Bolts Dimension chart
- Sizes of A2-70 Bolts/ Stud Bolts
- Double End Threaded Stud Bolts Torque Chart
- Do you know who are the best buyers of Stainless Steel Stud Bolt
- Studs Material & Grades
Stainless Steel Stud Bolt Specification Chart
Standard :
DIN, ASTM, BS and all International Standards
Size : M3 - M56 | 3/6" to 2" | Custom Sizes
Length : 3 mm to 200 mm
Type : Studs, Threaded Studs.
Size : M3 - M56 | 3/6" to 2" | Custom Sizes
Length : 3 mm to 200 mm
Type : Studs, Threaded Studs.
| Standards | Designation |
|---|---|
| Thread Requirements of Stud Bolts | UNC & UNF, ASME B1.1, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge) |
| Manufacturing Process | Cold Heading, Wire Drawing, Heat Treatment, Insert tapping, Inspection, Surface Plating, Packing |
| Delivery time | custom product will according to special requirement, Regular product is about 7-15 days |
| Coatings | PTFE |
| Head | Square, Hex, Hex flange, Round, T-head, Flat & Triangular etc |
| Neck type | Square, Hex, Oval, Triangular & Knurled etc |
| Dimensions | ASME B18.3, B18.2.1 |
| Melt Origin | South America/East Europe/Japan/Korea |
| Product Origin | Made in India |
| Threads Configuration | B1.13M 6h Metric Coarse Threads and ASME B1.1 2A/3A Inch Unified Threads |
| Certification | Dual Certified As per ASME & ASTM Codes |
| Additional Certifications | Merkblatt AD 2000 W2 Certified, PED 97/23/EC Certified |
| Mandatory Requirements | Free from Radioactive & Mercury Contamination |
| Additional Requirements | NACE MR0175 / MR0103 /ISO 15156 Compliance |
304 SS Stud Bolts Dimension chart
| STUD BOLT LENGTH (in inches) | 1/2 | 5/8 | 3/4 | 7/8 | 1 | 1 1/8 | 1 1/4 | 1.3/8 | 1 1/2 | 1.5/8 | 1.3/4 | 1 7/8 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2.1/2 | 10.8 | |||||||||||
| 2.3/4 | 11.6 | 19.8 | ||||||||||
| 3.1/4 | 12.4 | 21 | 32.4 | |||||||||
| 3.1/2 | 13.2 | 22.2 | 34.3 | 50 | ||||||||
| 4 | 14 | 23.4 | 36.2 | 52.6 | 71.8 | |||||||
| 4.1/2 | 14.8 | 24.6 | 38.1 | 55.2 | 75.2 | 102 | ||||||
| 4.3/4 | 15.6 | 25.8 | 40 | 57.8 | 78.6 | 106 | 137 | |||||
| 5 | 16.4 | 27 | 41.9 | 60.4 | 82 | 111 | 142 | 179 | ||||
| 5.1/2 | 17.2 | 28.2 | 43.8 | 63 | 85.4 | 115 | 147 | 186 | 234 | |||
| 6 | 18 | 29.4 | 45.7 | 65.6 | 88.8 | 119 | 153 | 193 | 242 | 289 | ||
| 6.1/4 | 18.8 | 30.6 | 47.6 | 68.2 | 92.2 | 123 | 158 | 200 | 250 | 298 | 263 | |
| 6.1/2 | 19.6 | 32.3 | 49.5 | 70.8 | 95.6 | 128 | 164 | 206 | 258 | 308 | 374 | 437 |
| 7 | 20.4 | 33.5 | 50.8 | 73.4 | 99 | 132 | 169 | 213 | 266 | 317 | 385 | 449 |
| 7.1/2 | 21.2 | 34.8 | 52.7 | 75.5 | 103 | 136 | 174 | 220 | 275 | 326 | 396 | 462 |
| 8 | 22 | 36.1 | 54.5 | 78 | 106 | 141 | 180 | 226 | 283 | 336 | 407 | 475 |
| 8.1/4 | 37.3 | 56.3 | 80.5 | 108 | 145 | 185 | 233 | 291 | 345 | 418 | 488 | |
| 8.3/4 | 38.6 | 58.1 | 83.1 | 112 | 149 | 191 | 240 | 299 | 354 | 429 | 500 | |
| 9 | 39.8 | 60 | 85.6 | 115 | 153 | 196 | 246 | 307 | 364 | 440 | 513 | |
| 9.1/2 | 41.1 | 61.8 | 88.2 | 118 | 158 | 201 | 253 | 316 | 373 | 451 | 526 | |
| 10 | 63.7 | 90.7 | 122 | 162 | 206 | 260 | 324 | 382 | 463 | 538 | ||
| 10/1.4 | 93.3 | 125 | 166 | 212 | 267 | 332 | 391 | 474 | 551 | |||
| 1.0.1/2 | 128 | 171 | 217 | 273 | 340 | 401 | 485 | 564 | ||||
| 11 | 132 | 175 | 223 | 279 | 345 | 410 | 496 | 576 | ||||
| 11.1/2 | 135 | 179 | 228 | 285 | 350 | 419 | 507 | 589 | ||||
| 12 | 138 | 184 | 233 | 292 | 358 | 429 | 518 | 602 |
| STUD BOLT LENGTH (in mm) | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 60 | 5,6 | 8,1 | 12 | 15,6 | |||||||||
| 70 | 6,1 | 8,9 | 13 | 16,9 | 23,7 | ||||||||
| 80 | 6,6 | 9,6 | 14 | 18,2 | 25,4 | 32,5 | |||||||
| 90 | 7,1 | 10,3 | 15 | 19,6 | 27,1 | 34,5 | 45,5 | ||||||
| 100 | 7,6 | 11 | 16 | 21 | 28,8 | 36,7 | 47,2 | 54,2 | |||||
| 110 | 8,1 | 11,7 | 17 | 22,2 | 30,4 | 38,7 | 48,3 | 58,2 | 80 | ||||
| 120 | 8,6 | 12,4 | 18 | 23,6 | 32,1 | 40,7 | 50,9 | 60,2 | 84,7 | 107 | |||
| 130 | 9,1 | 13,2 | 19 | 24,9 | 33,7 | 42,8 | 53,4 | 63,2 | 88,6 | 111 | 141 | ||
| 140 | 9,6 | 14,2 | 20 | 26,2 | 35,4 | 44,9 | 55,9 | 66,2 | 92,4 | 116 | 147 | 185 | |
| 150 | 10,1 | 14,9 | 20,8 | 27,5 | 36,9 | 46,9 | 58,5 | 69,2 | 96,3 | 121 | 153 | 192 | 237 |
| 160 | 10,6 | 15,6 | 21,8 | 29,1 | 38,6 | 49 | 61 | 72,2 | 100,1 | 126 | 159 | 199 | 245 |
| 170 | 16,4 | 22,8 | 30,4 | 40,2 | 51,1 | 63,5 | 75,2 | 104 | 130 | 165 | 206 | 253 | |
| 180 | 23,8 | 31,8 | 41,9 | 52,3 | 66,1 | 78,1 | 108 | 135 | 171 | 213 | 261 | ||
| 190 | 33,1 | 43,5 | 54,4 | 68,4 | 81,1 | 112 | 140 | 176 | 219 | 269 | |||
| 200 | 34,5 | 45,2 | 56,2 | 71 | 84 | 116 | 144 | 182 | 226 | 278 | |||
| 210 | 35,8 | 46,8 | 58,5 | 73,5 | 88,4 | 120 | 149 | 188 | 233 | 286 | |||
| 220 | 37,1 | 48,4 | 60,6 | 76,1 | 91,4 | 124 | 154 | 194 | 240 | 294 | |||
| 230 | 38,5 | 50,1 | 62,6 | 78,6 | 94,4 | 127 | 159 | 201 | 247 | 302 | |||
| 240 | 39,8 | 51,7 | 64,7 | 81,2 | 97,4 | 130,9 | 164 | 208 | 253 | 310 | |||
| 250 | 41,1 | 53,4 | 66,8 | 83,7 | 100,4 | 134,8 | 172 | 214 | 260 | 319 | |||
| 260 | 55 | 68,8 | 86,3 | 103,4 | 138,6 | 177 | 220 | 267 | 327 | ||||
| 270 | 56,6 | 70,9 | 88,8 | 106,4 | 142,5 | 182 | 224 | 274 | 335 | ||||
| 280 | 58,3 | 73 | 91,4 | 109,4 | 146,3 | 187 | 230 | 281 | 343 | ||||
| 290 | 75 | 93,9 | 112,4 | 150,1 | 192 | 236 | 291 | 360 | |||||
| 300 | 77,1 | 96,5 | 115,4 | 154 | 196 | 241 | 298 | 368 | |||||
| 320 | 101,6 | 121,3 | 161,7 | 206 | 253 | 312 | 380 | ||||||
| 340 | 127,3 | 169,4 | 215 | 265 | 326 | 395 | |||||||
| 360 | 133,3 | 177,1 | 224 | 276 | 340 | 411 | |||||||
| 380 | 184,8 | 234 | 288 | 353 | 428 | ||||||||
| 400 | 192,5 | 243 | 299 | 367 | 444 | ||||||||
| 420 | 252 | 311 | 381 | 460 | |||||||||
| 440 | 262 | 322 | 394 | 477 | |||||||||
| 460 | 271 | 334 | 408 | 493 | |||||||||
| 480 | 281 | 345 | 422 | 509 | |||||||||
| 500 | 290 | 357 | 436 | 526 |

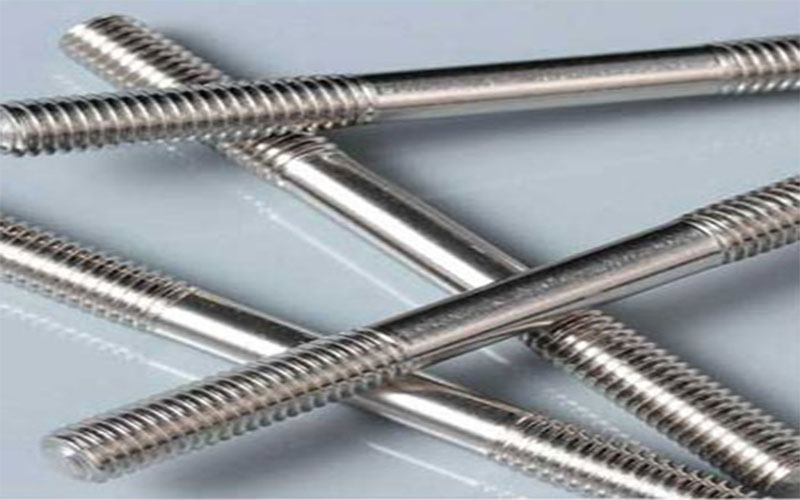

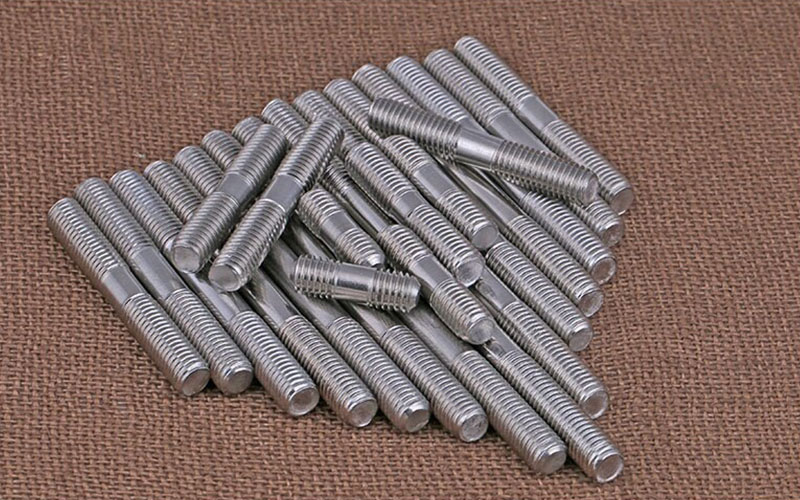

Double End Threaded Stud Bolts Torque Chart
| Flange Size |
B16.5 Class 150 RF/ Ring Gaskets | B16.5 Class 150 FF/ Full Face Gaskets | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Torque / Round (ft-lbs) | Stud Bolts Tighten Sequence | Torque / Round (ft-lbs) | Stud Bolts Tighten Sequence | |||||||
| 1st | 2nd | Final | Dwg/No. | Bolt Size | 1st | 2nd | Final | Dwg*/No. | Bolt Size | |
| 1/2″ | 10 | 20 | 30 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 3/4″ | 13 | 27 | 40 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 1″ | 15 | 30 | 50 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 1-1/4″ | 20 | 40 | 60 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 1-1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 2″ | 40 | 80 | 120 | 4-bolt | 5/8″ | 40 | 80 | 120 | 4-bolt | 5/8″ |
| 2-1/2″ | 40 | 80 | 120 | 4-bolt | 5/8″ | 40 | 80 | 120 | 4-bolt | 5/8″ |
| 3″ | 40 | 80 | 120 | 4-bolt | 5/8″ | 40 | 80 | 120 | 4-bolt | 5/8″ |
| 3-1/2″ | 40 | 80 | 120 | 8-bolt | 5/8″ | 40 | 80 | 120 | 8-bolt | 5/8″ |
| 4″ | 40 | 80 | 120 | 8-bolt | 5/8″ | 40 | 80 | 120 | 8-bolt | 5/8″ |
| 5″ | 60 | 120 | 200 | 8-bolt | 3/4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 6″ | 60 | 120 | 200 | 8-bolt | 3/4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 8″ | 60 | 120 | 200 | 8-bolt | 3/4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 10″ | 95 | 190 | 320 | 12-bolt | 7/8″ | 95 | 190 | 320 | 12-bolt | 7/8″ |
| 12″ | 95 | 190 | 320 | 12-bolt | 7/8″ | 95 | 190 | 320 | 12-bolt | 7/8″ |
| 14″ | 147 | 294 | 490 | 12-bolt | 1″ | 147 | 294 | 490 | 12-bolt | 1″ |
| 16″ | 147 | 294 | 490 | 16-bolt | 1″ | 147 | 294 | 490 | 16-bolt | 1″ |
| 18″ | 213 | 426 | 710 | 16-bolt | 1-1/8″ | 213 | 426 | 710 | 16-bolt | 1-1/8″ |
| 20″ | 213 | 426 | 710 | 20-bolt | 1-1/8″ | 213 | 426 | 710 | 20-bolt | 1-1/8″ |
| 24″ | 300 | 600 | 1,000 | 20-bolt | 1-1/4″ | 300 | 600 | 1,000 | 20-bolt | 1-1/4″ |
Do you know who are the best buyers of Stainless Steel Stud Bolt
| Canada, Ellington -United States, UK, Poland | Stainless Steel Stud Bolts |
| France, Thailand, Qatar, Europe | Stud Bolt A193 B7 |
| Germany, Malaysia, Czechia, Thailand | Threaded Stud Bolt |
| USA, Finland, Malaysia, Bangladesh | M8 X 1.25 Stud |
| Saudi Arabia (KSA), Brazil, South Africa, Kuwait | Grade 8 Studs |
| South Africa, Singapore, Bahrain, Singapore | A193 B7 Studs |
| Japan, Malaysia, Europe, Romania | Stepped Stud |
| Australia, Nigeria, Philippines, UK | T Slot Stud |
| Malaysia, UAE, Oman, Hong Kong | Stainless Stud |
| Italy, Singapore, Chile, Iran | Double Sided Stud Bolt |
| Indonesia, Belgium, Dammam -KSA, Philippines | High Tensile Studs |
| Turkey, Malaysia, United Arab Emirates (UAE), Norway | 6mm Stud Bolt |
| Malaysia, Dubai, Netherlands, Russia | 10mm Stud Bolt |
| Colombia, China, Sweden, Malaysia | M8 To M10 Stud |
| Spain, UK, Egypt, Mexico | Metric Stud Bolts |
| Europe, UAE, United Kingdom -UK, Malaysia | Welded Stud Bolts |
| Malaysia, Singapore, Philippines, Canada | B8 Stud Bolts |
| Taiwan, Philippines, Malaysia, Los Alamos -Mexico | Anchor Stud Bolt |
| South Korea, Malaysia, Singapore, NY 12203 (USA) | 1 Inch Stud |
High Tensile Studs Material & Grades
Stainless Steel Studs :
AISI 302, 304, 304L,316, 316L, 310, 317, 317L, 321, 347, 410, 420,904L etc.
Duplex & Super Duplex Steel Studs :
ASTM / ASME A815 UNS No. S31803, UNS No. S 32205, UNS No. S 31254, UNS No. S 31550, UNS No. S 32750, and UNS No. S 32760
Carbon Steel Studs :
ASTM A307, A193
Alloy Steel Studs :
ASTM / ASME A/SA 193 / 194 B 6, B 7/ B 7M, B 16, 2, 2HM, 2H, GR 6, B 7, B 7M
Nickel Alloy Studs :
ASTM / ASME SB 160 / 164 / 425 / 166 / 446 / 574 / 472 UNS 2200 (NICKEL 200) / UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8825 (INCONEL 825), UNS 6600 (INCONEL 600) / UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 8020 (ALLOY 20 / 20 CB 3)
AISI 302, 304, 304L,316, 316L, 310, 317, 317L, 321, 347, 410, 420,904L etc.
Duplex & Super Duplex Steel Studs :
ASTM / ASME A815 UNS No. S31803, UNS No. S 32205, UNS No. S 31254, UNS No. S 31550, UNS No. S 32750, and UNS No. S 32760
Carbon Steel Studs :
ASTM A307, A193
Alloy Steel Studs :
ASTM / ASME A/SA 193 / 194 B 6, B 7/ B 7M, B 16, 2, 2HM, 2H, GR 6, B 7, B 7M
Nickel Alloy Studs :
ASTM / ASME SB 160 / 164 / 425 / 166 / 446 / 574 / 472 UNS 2200 (NICKEL 200) / UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8825 (INCONEL 825), UNS 6600 (INCONEL 600) / UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 8020 (ALLOY 20 / 20 CB 3)
